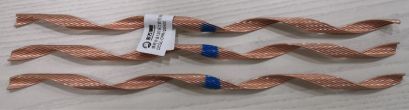

Pre-twisted protective wire for load-bearing cable
The pre-twisted protective wire has a simple structure and is wound on the outer layer of the wire. A set of pre-twisted wires form an empty tube to wrap the wire to prevent the wire from wearing out and reduce the stress and vibration of the wire.
Classification:
Electrified railway series
Product accessories:
Product Introduction
use:
The center of the load-bearing cable is aligned with the support point or suspension point with the center of the pre-twisted anti-wear protection strip, and it is wound on the outer layer of the load-bearing cable, and the load-bearing cable is held properly. The pre-twisted anti-wear protection strip can protect the load-bearing cable from the direct wear of the load-bearing cable seat and extend the life of the load-bearing cable.

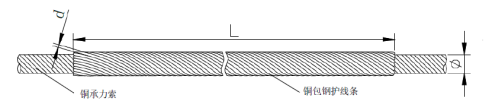

structure:
Features:
Reduce the wear of the load-bearing cable
Anti-loose
preservative
Easy to install
Strong interchangeability
Selection table of pre-twisted protective wire for load-bearing cable
|
Q/CR608-2017 |
RP |
Applicable lead model |
Lead outer |
length |
Color code |
Monofilament |
weight |
|
Q/CR608E(HX3-70b) |
DHX3-70b |
JT70、JTM70、JTMH70 |
10.50 |
2000 |
black |
2.18 |
0.96 |
|
Q/CR608E(HX3-95b) |
DHX3-95b |
JT95、JTM95、JTMH95 |
12.50 |
2000 |
purple |
2.18 |
1.15 |
|
Q/CR608E(HX3-120b) |
DHX3-120b |
JT120、JTM120、JTMH120 |
14.00 |
2000 |
blue |
2.18 |
1.35 |
|
Q/CR608E(HX3-150b) |
DHX3-150b |
JT150、JTM150、JTMH150 |
15.80 |
2000 |
green |
2.18 |
1.41 |
|
Q/CR608E(HX3-70b-800) |
DHX3-70b-800 |
JT70、JTM70、JTMH70 |
10.50 |
800 |
black |
2.18 |
0.38 |
|
Q/CR608E(HX3-95b-800) |
DHX3-95b-800 |
JT95、JTM95、JTMH95 |
12.50 |
800 |
purple |
2.18 |
0.46 |
|
Q/CR608E(HX3-120b-800) |
DHX3-120b-800 |
JT120、JTM120、JTMH120 |
14.00 |
800 |
blue |
2.18 |
0.54 |
|
Q/CR608E(HX3-150b-800) |
DHX3-150b-800 |
JT150、JTM150、JTMH150 |
15.80 |
800 |
green |
2.18 |
0.57 |
|
Q/CR608E(HX3-70b-600) |
DHX3-70b-600 |
JT70、JTM70、JTMH70 |
10.50 |
600 |
black |
2.18 |
0.29 |
|
Q/CR608E(HX3-95b-600) |
DHX3-95b-600 |
JT95、JTM95、JTMH95 |
12.50 |
600 |
purple |
2.18 |
0.35 |
|
Q/CR608E(HX3-120b-600) |
DHX3-120b-600 |
JT120、JTM120、JTMH120 |
14.00 |
600 |
blue |
2.18 |
0.41 |
|
Q/CR608E(HX3-150b-600) |
DHX3-150b-600 |
JT150、JTM150、JTMH150 |
15.80 |
600 |
green |
2.18 |
0.43 |
|
Q/CR608E(HX3-70a-600) |
DHX3-70a-600 |
JT70、JTM70、JTMH70 |
10.50 |
600 |
black |
2.06 |
0.28 |
|
Q/CR608E(HX3-95a-600) |
DHX3-95a-600 |
JT95、JTM95、JTMH95 |
12.50 |
600 |
purple |
2.06 |
0.34 |
|
Q/CR608E(HX3-120a-600) |
DHX3-120a-600 |
JT120、JTM120、JTMH120 |
14.00 |
600 |
blue |
2.06 |
0.40 |
|
Q/CR608E(HX3-150a-600) |
DHX3-150a-600 |
JT150、JTM150、JTMH150 |
15.80 |
600 |
green |
2.06 |
0.41 |
|
Note: This table only lists some products commonly used in electrified railways. If you need products with other specifications, please call Beijing Dongfang Ruineng. |
|||||||
