Pre-twisted equidistant clamp
Classification:
Electrified railway series
Product accessories:
Product Introduction
use:
The relative spacing of the horizontal double-split additional wires is fixed by pre-twisted equidistant wire clamps.

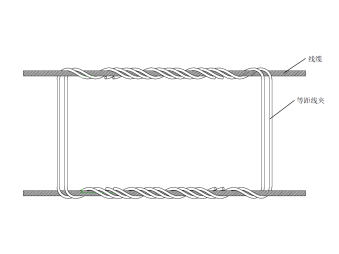

structure:
composition:
The pre-twisted equidistant clamp is composed of 2 sets of aluminum alloy pre-twisted wires
Features:
Ensure that the horizontal double-split additional wire spacing remains unchanged to meet electrical performance;
In bad weather or short-circuit conditions, the horizontal double-split additional wires will not be entangled with each other to ensure line safety.
The material used is the same as the wire, so as to ensure better corrosion resistance;
Installation is quick, simple and convenient. Without any tools, the site can be installed with bare hands by one person.
Pre-twisted equidistant clamp selection table
|
Split spacing：180mm |
||||||
|
RP Product number |
Applicable clues |
Reference guard line |
Monofilament |
Color code |
weight Kg |
|
|
Lead model |
Applicable wire |
|||||
|
DJ-RP-120180 |
LBGLJ-120/20 |
15.11～15.69 |
400 |
6.35 |
green |
0.35 |
|
JL/LB1A-125-26/7 |
||||||
|
DJ-RP-12035180 |
LBGLJ-120/35 |
15.70～16.30 |
400 |
6.35 |
yellow |
0.36 |
|
DJ-RP-240180 |
LBGLJ-240/30 |
21.30～22.11 |
550 |
6.35 |
green |
0.40 |
|
JL/LB1A-250-26/7 |
||||||
|
DJ-RP-300180 |
LBGLJ-300/25 |
22.98～23.86 |
580 |
6.35 |
black |
0.45 |
|
JL/LB1A-315-45/7 |
||||||
|
Note: This table only lists some products commonly used in electrified railways. If you need products with other specifications, please call Beijing Dongfang Ruineng. |
||||||
Pre-twisted equidistant clamp selection table
|
Split spacing：205mm |
||||||
|
RP Product number |
Applicable clues |
Reference guard line |
Monofilament |
Color code |
weight Kg |
|
|
Lead model |
Applicable wire |
|||||
|
DJ-RP-120205 |
LBGLJ-120/20 |
15.11～15.69 |
400 |
6.35 |
green |
0.36 |
|
JL/LB1A-125-26/7 |
||||||
|
DJ-RP-12035205 |
LBGLJ-120/35 |
15.70～16.30 |
400 |
6.35 |
yellow |
0.38 |
|
DJ-RP-240205 |
LBGLJ-240/30 |
21.30～22.11 |
550 |
6.35 |
green |
0.42 |
|
JL/LB1A-250-26/7 |
||||||
|
DJ-RP-300205 |
LBGLJ-300/25 |
22.98～23.86 |
580 |
6.35 |
black |
0.48 |
|
JL/LB1A-315-45/7 |
||||||
|
Note: This table only lists some products commonly used in electrified railways. If you need products with other specifications, please call Beijing Dongfang Ruineng. |
||||||
